Uninterruptible Power Supply
We offer reliable UPS systems designed to keep your operations running during power interruptions. Whether it's Online UPS, Line Interactive, or Offline systems, AGES ensures stable and uninterrupted power for your critical equipment.
- Online UPS for sensitive systems
- Line Interactive UPS for offices & IT setups
- Offline UPS basic backup for small devices
Product Overview

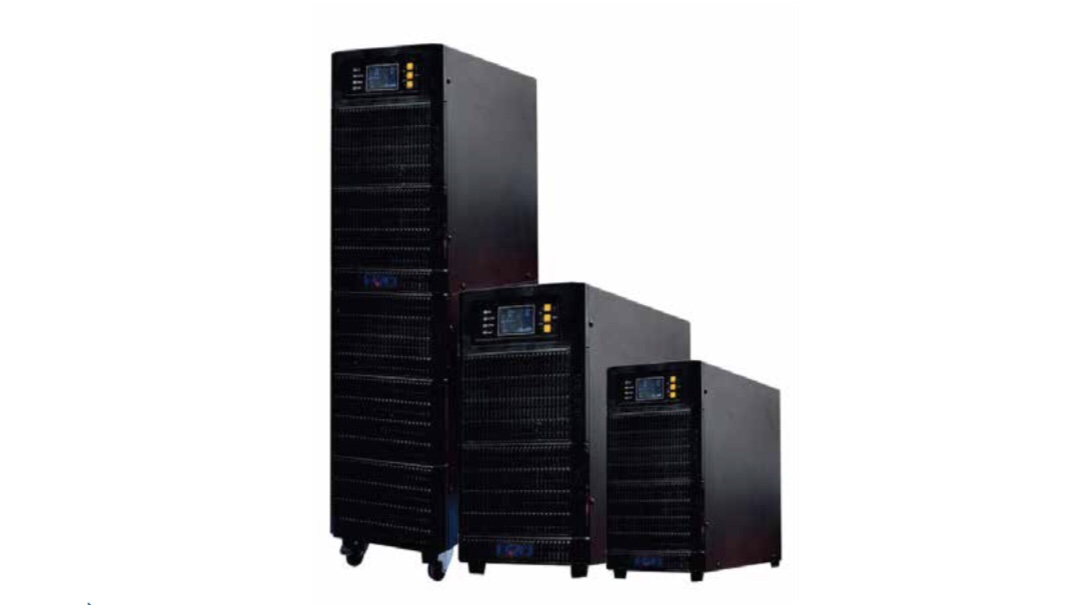

PowerAge Online UPS is a high-performance, double-conversion power supply system that ensures a consistent and clean sine wave output. Built for mission-critical applications, it provides superior protection for sensitive electronic equipment against power outages, fluctuations, and electrical disturbances.
UPS Features
HIGH SPEED DSP PROCESSOR
Ensuring the operation is faster and more stable.
OUTPUT 100% UNBALANCED LOAD
The UPS can accept 3-phase 100% unbalanced load to satisfy various load configurations.
ECO FUNCTION
Under good power conditions, UPS can work in ECO mode with efficiency up to 98%, providing green and energy-saving performance.
UPS FOR INDUSTRIAL LOADS
With strong overload capability, output galvanic isolation, and low harmonic current distortion, it is ideal for industrial applications. The PV Plus Series is suitable for large battery banks and ensures recharging within 10 hours as recommended by the battery manufacturer.
RATING FLEXIBILITY
All power ratings of the PE series can also be used as frequency converters (50 Hz to 60 Hz and vice versa).
ADVANCED BATTERY MANAGEMENT (ABM)
- Periodical battery test and automatic transfer between boost and float charging to extend battery lifespan.
- Automatically adjusts the battery charging current according to battery capacity.
- Recharge temperature compensation (optional).
- Displays remaining backup time.
UPS Specifications
| Specification | Details |
|---|---|
| MODEL | PAE-LF-20/30kVA, PAE-LF-40/60/80kVA, PAE-LF-100/120kVA, PAE-LF-140/200kVA |
| UPS (L*W*D) | 540x1120x620, 660x1550x860, 800x1800x1120 |
| UPS weight (kg) | 225/273, 437/500/600, 810/850 |
| Temperature | 0-40 working environment) |
| Relative Humidity | 0 to 95%, non-condensing |
| Noise | 60 dB at 1.5m from surface of unit |
| Altitude | 100m (height rises every 100m, power decreases 1%, maximum height 4000m) |
| Efficiency | 92% |
| Transfer time | 0 ms |
| Technology | True double-conversion online technology, IGBT inverter |
| Input Voltage | 3x220/380 VAC+-25% |
| Input Frequency | 50Hz +-15% |
| Conductors | Three phases + N + E |
| Output Voltage (Selectable) | 3x220/380 VAC +- 1% (More voltage options available) |
| Output Frequency | 50 +-0.1Hz |
| Waveform | Pure sine wave generated by high frequency PWM inverter |
| Harmonic Distortion | 2% (Linear load), 5% (Nonlinear load) |
| Crest Factor | 3:1 |
| Power Factor | = > 0.9 |
| Voltage Regulation | Load balance: +- 1% |
| Overload Capacity | 125% for 12 minutes / 150% for 1 minute to bypass |
| Battery Type | Maintenance-free sealed lead-acid battery, 12V x 30to32 pcs settable |
| Full Load Autonomy | 3 to 15 minutes (extended range capability) |
| Typical Recharge Time | 4 to 8 hours (90%) |
| Battery Features | Self test, adjustable transfer point & alarm, fuse protection, battery switch, temperature compensation, software protection, overvoltage tripping |
| Rectification Protection | Input switch, overcurrent protection, temperature protection |
| Hardware Protection | Breaker for input, output, battery & bypass, DC fast fuses, fans, redundant power supplies, temperature sensors, alarms |
| Bypass | Static solid state, automatic & manual operation without interruption (External bypass optional) |
| Emergency Switch | Remote and/or local EPO |
| Control & Communication | Interactive LCD (touch screen), audible & visual alarms, RS232, SNMP-RJ45, mobile network remote monitoring |
